ROTARY STAGES & GEARHEADS

Zero-backlash 'gearheads'.....without gears!! Speed reducers & rotary stages for high precision positioning applications. Steel balls replace gears to provide a unique combination of low noise, compact size and high torque.

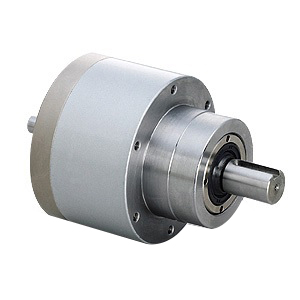

BR Series Coaxial-Shaft Speed Reducer

Zero-backlash

Reduction ratio's of : 10, 15, 18, 20, 30, 40, 50, 100, 200, 300, 400, 600, 900, 1600.

Output (peak accel) torque : 9.8 to 176Nm.

Reducer max. dia. : 50, 66, 86, 100, 125 & 160mm.

Input : Solid or hollow shaft, NEMA plug-in.

Output : Solid shaft or flange.

Customised mounting flanges can be easily added.

Download the full catalogue (1.8Mb) here

CBR Series Orthogonal-Shaft Speed Reducer

Zero-backlash

Reduction ratio's of : 5, 10, 15, 20 & 30.

Output (peak accel) torque : 4.8 to 114Nm.

Centre distance : 16, 25, 32 & 40mm.

Input : Hollow shaft and clamp.

Output : Solid shaft.

Download the full catalogue (0.2Mb) here

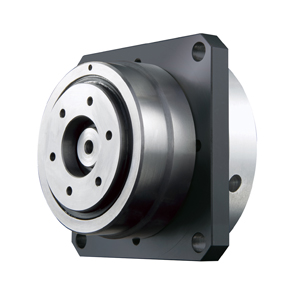

JFR Series Rotary Stage

Zero-backlash

Reduction ratio's of : 10.5, 15, 20, 30 & 40.

Output (peak accel) torque : 25.5 to 198.5Nm.

Output flange dia. : 42.3, 63.5 & 85.5mm.

Input : Hollow shaft with clamp & mounting flange.

Output : Flange.

'Plug-in' compatibility with motors from most manufacturers, including Mitsubishi, Yaskawa, Panasonic & Oriental Motor amongst others.

Download the full catalogue (1Mb) here
