INDEXING DRIVES

Indexing, oscillating and pick & place mechanisms have always been the core business for Precision Motion and over the years a comprehensive range of electro-mechanical, pneumatic and mechatronic solutions have been carefully selected, to create what is possibly the largest portfolio of solutions available under one roof, anywhere in the world.

Miniature Rotary Indexing Tables

2 to 30 indexing stations available as standard (others by request)

Flange or shaft output

Cam-operated; smooth, jerk-free motion profile

Micron-precise accuracy and repeatability

Robust and reliable (often maintenance-free)

Compact package

Competitively priced solution, for applications with dial-plate diameter typically less than 500mm.

Rotary Indexing Tables

2 to 32 indexing stations available as standard (others by request)

Flange output

Cam-operated; smooth, jerk-free motion profile

Micron-precise accuracy and repeatability

Robust and reliable (often maintenance-free)

Various motorisation packages available

Heavy-duty output bearing, capable of withstanding high external forces

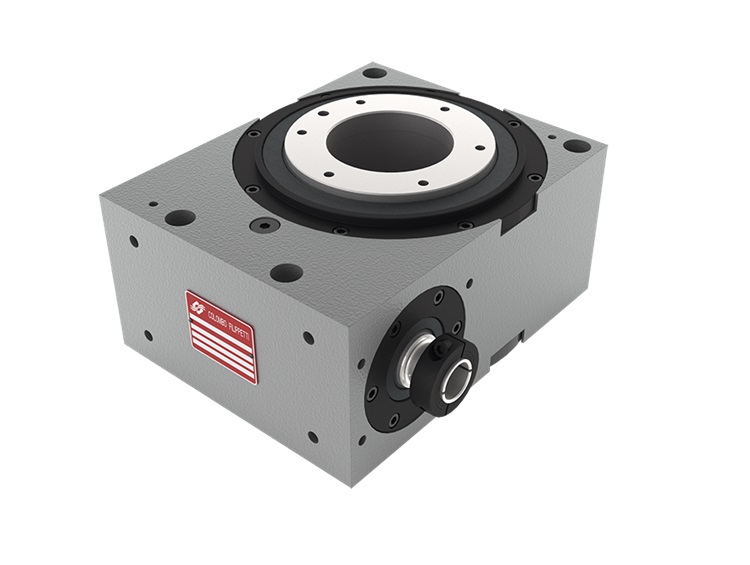

Rotary Indexing Rings

4 to 36 indexing stations available as standard (others by request)

Large central through hole (up to dia.1000mm as standard)

Cam-operated; smooth, jerk-free motion profile

Micron-precise accuracy and repeatability

Robust and reliable (often maintenance-free)

Various motorisation packages available

Heavy-duty output bearing, capable of withstanding high external forces

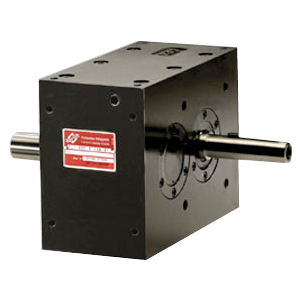

Indexing and Oscillating Drives

1 to 24 indexing stations available as standard (others by request)

15 to 45deg oscillation angles available as standard (others by request)

Flange or shaft output

Suitable for very high cycle-rates (up to 4,800cyc/min)

Cam-operated; smooth, jerk-free motion profile

Micron-precise accuracy and repeatability

Robust and reliable (often maintenance-free)

Various motorisation packages available

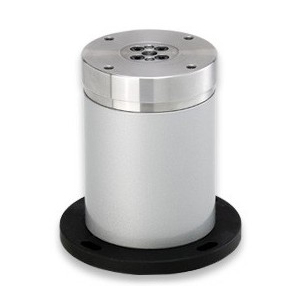

Pneumatic Indexers

2 to 12 indexing stations available as standard (others by request)

Flange or shaft output

Compact package

Shot-pin variant, for high precision applications

Competitively priced solution for low-speed cycling applications with dial-plate diameter typically less than 500mm.

Mechatronic Indexers

4 to 12 indexing stations available as standard

Flange output

Plug and play. No programming required; just a 24v dc power supply

Compact package with integral motor

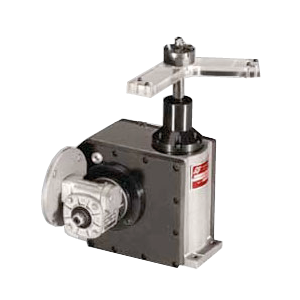

Rotary and Linear Pick & Place Drives

Linear stroke between 10 and 150mm

Rotation stroke (indexing or oscillating) between 15 and 180deg

Cam-operated; smooth, jerk-free motion profile

Micron-precise accuracy and repeatability

Robust and reliable (often maintenance-free)

Various motorisation packages available

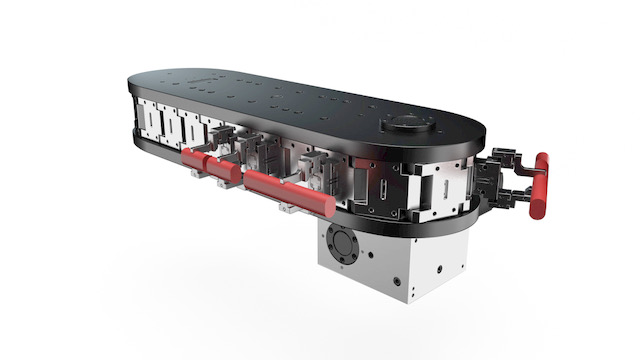

Precision Link Conveyors

Standard chain pitches of 50, 75, 100, 150 and 200mm.

Conveyor centre distance between 300 and 2400mm as standard (others by request)

Over-under or carousel configuration

Cam-operated; smooth, jerk-free motion profile

Micron-precise accuracy and repeatability

Robust and reliable (often maintenance-free)

Various motorisation packages available

To discuss a product or application, please don’t hesitate to contact us. Catalogues and CAD are available upon request, however there’s no need to wade through mountains of specification sheets or do any calculations yourself; simply provide details of your application and we’ll be pleased to make a detailed analysis and propose the most appropriate solution from our range.
